Open Width Washing Machine After Printing For Knitted Fabric

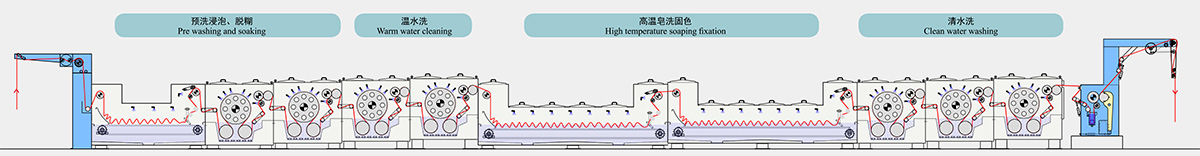

Open width washing process after printing of cotton, T/C, CVC and other knitted fabrics.


Production capacity: 0.9 tons of cloth per hour

Water consumption: 6-12 tons of water is consumed to produce 1 ton of cloth

Steam consumption: 0.5-0.9 tons of steam is consumed to produce 1 ton of cloth


Machine speed:60m/min

Working width:1800-3600mm

Heating method:Steam

Steam and compressed air pressure:0.4MPa

Total power:105KW

Overall dimension(Type220):(L×W×H)31000×4100×2900mm


·Adopt spray flushing, grid by grid backflow, low liquid level and other measures to achieve the effect of high efficiency, energy saving and emission reduction.

·Automatic control system: knitted fabric has the characteristics of large elasticity, large expansion and deformation, and easy to curl. The machine adopts German imported tension sensor and French Schneider high-end communication frequency converter to control the tension. The electric control response time is 4ns, Constant tension 0.6kg.

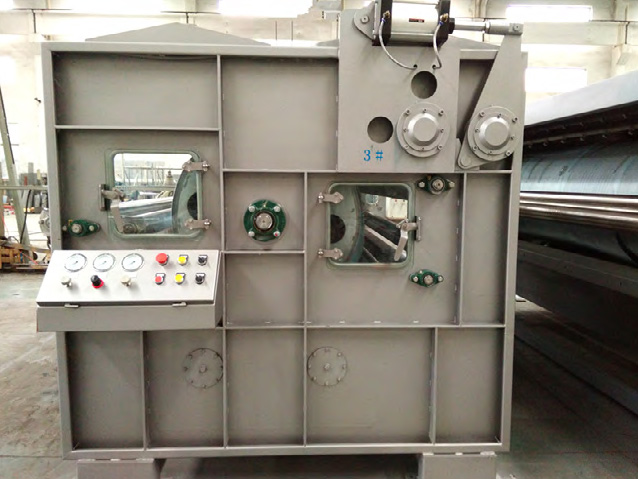

·Horizontal rolling mill: before the cloth surface enters the rolling point, there is an active spinning roller, which clings to the rolling mill to ensure that the knitted fabric will not roll back twice when it enters the rolling mill, so as to avoid dead wrinkles.

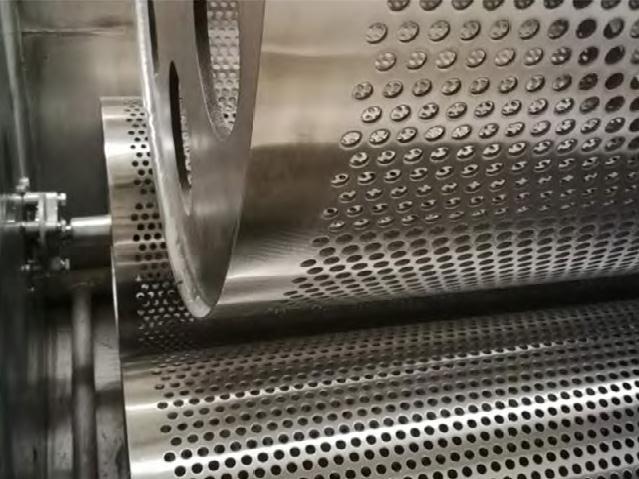

·utomatic filter: there are a large number of fiber fluff, sundries and paste in the circulating liquid, which is easy to affect the flow and water pressure of spray cleaning. The automatic filter is equipped with a rotary brush roller on the rotary circular filter net. When the liquid is sucked out of the net, the sundries are blocked outside the net, and are cleaned out of the box through the brush roller, which greatly improves the utilization rate of water.
